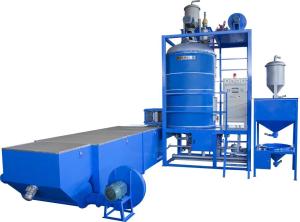

Energy Efficiency EPS Pre Expander Sandwich Foam Panel Production Line

Brand Name : PINSHENG

Model Number : PSPEC90/120

Place of Origin : Zhejiang China

MOQ : 1

Price : negotiation

Payment Terms : T/T LC

Supply Ability : 10pcs per month

Delivery Time : 6-10days

Expansion Chamber Diameter : 1200mm

Expansion Chamber Volume : 2.2m3

Port : SHANGHAI/NINGBO

Warranty : 1 year

Overall Dimensions : 4900x4700x3200 mm

weight : 1800

Transport Package : Standard Export Package

Raw Material : EPS

Type : Automatic

Material : Stainless Steel

Contact Now

Expanded Polystyrene EPS Pre Expander Sandwich Foam Panel Production Line.

Key Components of an EPS Pre Expander

  1. Feeding System: Automatically feeds raw polystyrene beads into the pre-expander.

  2. Heating System: Uses steam or hot air to heat the beads, causing them to expand. This is a critical step that facilitates the expansion process.

  3. Expansion Chamber: The main body where the beads are heated and expanded. The chamber is designed to maintain the right pressure and temperature levels for effective expansion.

  4. Cooling System: After expansion, the beads need to cool down to ensure they retain their expanded shape.

  5. Control Panel: Automated controls regulate the temperature, pressure, and timing of the expansion process for precision and efficiency.

Advantages of EPS Pre Expanders

  • High Efficiency: Capable of quickly processing large volumes of polystyrene beads, making them suitable for high-production environments.
  • Quality Control: Ensures consistent quality of expanded beads by controlling the expansion parameters.
  • Energy Efficiency: Many modern pre-expanders are designed to minimize energy consumption during the heating and expansion processes.
  • Flexibility: Can be adjusted to accommodate different bead types and sizes based on the end product requirements.

Applications of Expanded EPS

The expanded EPS beads produced by the pre-expander can be used in a variety of applications, including:

  • Packaging: Protective packaging for fragile items like electronics and glassware.
  • Insulation: Used in construction for thermal insulation in walls, roofs, and floors.
  • Crafts and Decoration: Lightweight structures in arts and crafts.
  • Custom Molding: Additional processing in EPS block molding machines to make customized shapes for various industries.

Considerations When Choosing an EPS Pre Expander

  • Production Capacity: Evaluate the expected output requirements to select a machine that aligns with your production needs.
  • Quality Control Features: Look for machines with advanced monitoring systems for maintaining consistent bead quality.
  • Energy Efficiency: Consider the operating costs associated with energy consumption.
  • Maintenance and Support: Assess the manufacturer’s reputation for customer support and availability of spare parts.
Item Unit PSPEC90 PSPEC120
Expansion Chamber Diameter mm Ф900 Ф1200
Volume m3 1.2 2.2
Useable volume m3 0.8 1.5
Steam Inlet mm Ф25 Ф40
Consumption Kg/cycle 100-150 150-200
Pressure Mpa 0.6-0.8 0.6-0.8
Compressed air Inlet mm Ф25 Ф25
Pressure Mpa 0.6-0.8 0.6-0.8
Drainage Condensation mm Ф20 Ф20
Connected load Instaling power Kw 10 15
Density First expansion g/L 12-30 14-30
Second expansion g/L 8-11 8-13
Overall size (LXWXH) mm 4700X3000X3200 4900X4700X3200
Weight kg 1500 1800
Room height required mm 5000 5000
Productivity 15g/L kg/h 150 250
20g/L kg/h 200 300
25g/L kg/h 250 410
30g/L kg/h 300 500
